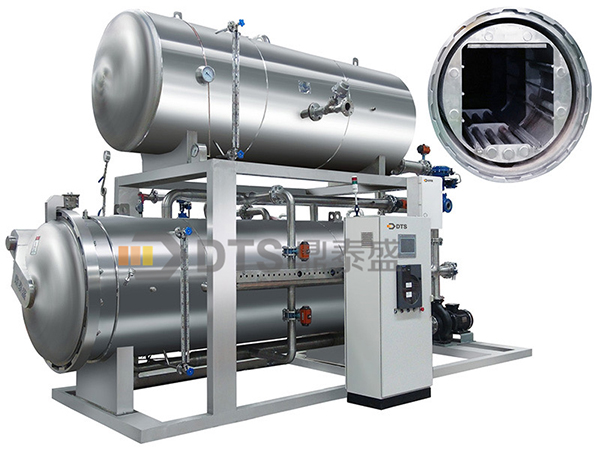

Water immersion rotary retort

  • Water immersion rotary retort

Features:

Water immersion rotary retort,autoclave,canned retort,retort in food industry,retort machine,retort,sterilization,sterilizer,Water immersion rotary retort uses the rotation of the rotating body to make the contents flow in the package, meanwhile drive the process water to improve the uniformity of the temperature in the retort. Hot water is prepared in advance in the hot water tank to start the sterilization process at high temperature and achieve the fast temperature rising, after sterilization, hot water is recycled and pumped back to hot water tank to achieve the purpose of energy saving.

Inquiry

Working principle

Put the product into the sterilization retort, cylinders are individually compressed and close the door. The retort door is secured by triple safety interlocking. Throughout the whole process, the door is mechanically locked.

The sterilization process is automatically carried out according to the recipe input to the micro-processing controller PLC.

At the beginning, the high-temperature water from the hot water tank is injected into the retort vessel. After the hot water is mixed with the product, it is circulated continuously through the large-flow water pump and the scientifically distributed water distribution pipe. Steam is injected through the water vapor mixer to make the product continue to heat up and sterilize.

The liquid flow switching device for retort vessel achieves uniform flow at any position in vertical and horizontal directions by switching the flow direction in the vessel, so as to achieve excellent heat distribution.

In the whole process, pressure inside the retort vessel is controlled by the program to inject or discharge air through the automatic valves to the vessel. Since it’s water immersion sterilization, pressure inside the vessel is not affected by temperature, and pressure can be set according to different packaging of different products, making the system more widely applicable3 piece can, 2 piece can, flexible packages, plastic packages etc..

In the cooling step, hot water recovery and replacement can be selected to recover the sterilized hot water to the hot water tank, thus saving heat energy.


When the process is completed, an alarm signal will be issued. Open the door and unload, then prepare for the next batch.

The uniformity of temperature distribution in the vessel is ±0.5℃, and pressure is controlled at 0.05 Bar.

During the whole process, the rotation speed and time of the rotating body are determined by the sterilization process of the product.

Uniform water flow distribution

By switching the water flow direction in the retort vessel, uniform water flow is achieved at any position in the vertical and horizontal directions. An ideal system for dispersing water to the center of each product tray to achieve uniform sterilization without dead ends.

High temperature short time treatment:

High temperature short time sterilization can be performed by heating hot water in a hot water tank in advance and heating from high temperature to sterilize.

Suitable for easily deformed containers

Because water has buoyancy, it can form a very good protective effect on the container when rotate.

Suitable for handling large packaging canned food

It is difficult to heat and sterilize the central part of large canned food in a short time by using a stationary retort, especially for food with high viscosity.

By rotating, the high viscosity food can be evenly heated to the center in a short time, and achieve effective sterilization effect. The buoyancy of the water at high temperature also plays a role in protecting the product packaging during the rotating process.

The rotating system has a simple structure and stable performance

The rotating body structure is processed and formed at a time, and then balanced treatment is performed to ensure the stability of the rotation

The roller system uses an external mechanism as a whole for processing. The structure is simple, easy to maintain, and greatly extend the service life.

The pressing system adopts double-way cylinders to automatically divide and compact, and the guide structure is stressed to prolong the service life of the cylinder.

    No data

Parameters

J-X13-3/4
J-X15-3/4/5

Packing type

    Plastic bottles, cups

    Big size softener bag



Applicable fields

    Dairy products

    Ready-to-eat meals, Porridge

    Vegetables and fruits

    Pet food
